Thermostatic Concealed Brass Shower System with Rectangular 304 Ceiling Overhead | GD-11030
GD-11030 is a thermostatic concealed shower system with a brass body, rectangular 304 stainless steel overhead and multifunction ABS hand shower. Four push-button outlet controls and two larger rotary knobs form a horizontal trim, with a separate handset bracket and hose. Chrome, Brushed Gold, Black and Gun Gray finish visualizations are provided for selection. Contact GODA for wholesale pricing, samples and OEM/ODM sourcing.
Specifications
- Model
- GD-11030
- Product Type
- Thermostatic Concealed Shower System
- Body Material
- Brass
- Overhead Shower Material
- 304 Stainless Steel
- Overhead Design
- Rectangular Ceiling Panel
- Hand Shower Material
- ABS
- Hand Shower Functions
- Multifunction
- Installation Type
- Concealed
- Water Supply
- Hot & Cold
- Outlet Selection
- Push-Button Diverter
- Temperature Control
- Thermostatic
- Control Layout
- Four Push Buttons and Two Larger Rotary Knobs
- Finish Shown
- Chrome Visualization
- Finish Options
- Chrome, Brushed Gold, Black and Gun Gray visualizations
- Application
- Residential Bathrooms, Hotels and Bathroom Projects
Thermostatic Concealed Brass Shower System with Rectangular Ceiling Overhead
GD-11030 combines a brass main body, thermostatic mixing and push-button outlet selection with a rectangular 304 stainless steel overhead shower and a multifunction ABS handset. The ceiling panel, horizontal control trim and separate handset bracket create a coordinated concealed layout for bathroom collections and project sourcing.
✨ Rectangular 304 Stainless Steel Overhead
The broad rectangular overhead contrasts with the circular handset and rotary controls. Its face includes a central nozzle field and two narrow side slots, as shown in the supplied reference. Confirm the outlet functions, panel dimensions, ceiling connection and mounting arrangement against the final technical drawing before installation.
Four Push Buttons & Two Rotary Knobs
Four small push buttons and two larger rotary knobs share a horizontal rectangular trim. The push-button arrangement provides outlet selection in a grouped control area. Ask GODA to confirm each button's outlet assignment and supported operating combinations for the configuration being ordered.
Thermostatic Control for Hot & Cold Supplies
GD-11030 includes thermostatic temperature control for mixed hot and cold water. Review supply conditions, commissioning instructions and future service access when specifying the concealed mixer. Confirm any temperature limits or safety-stop settings with the order documentation.
Multifunction ABS Hand Shower & Compact Holder

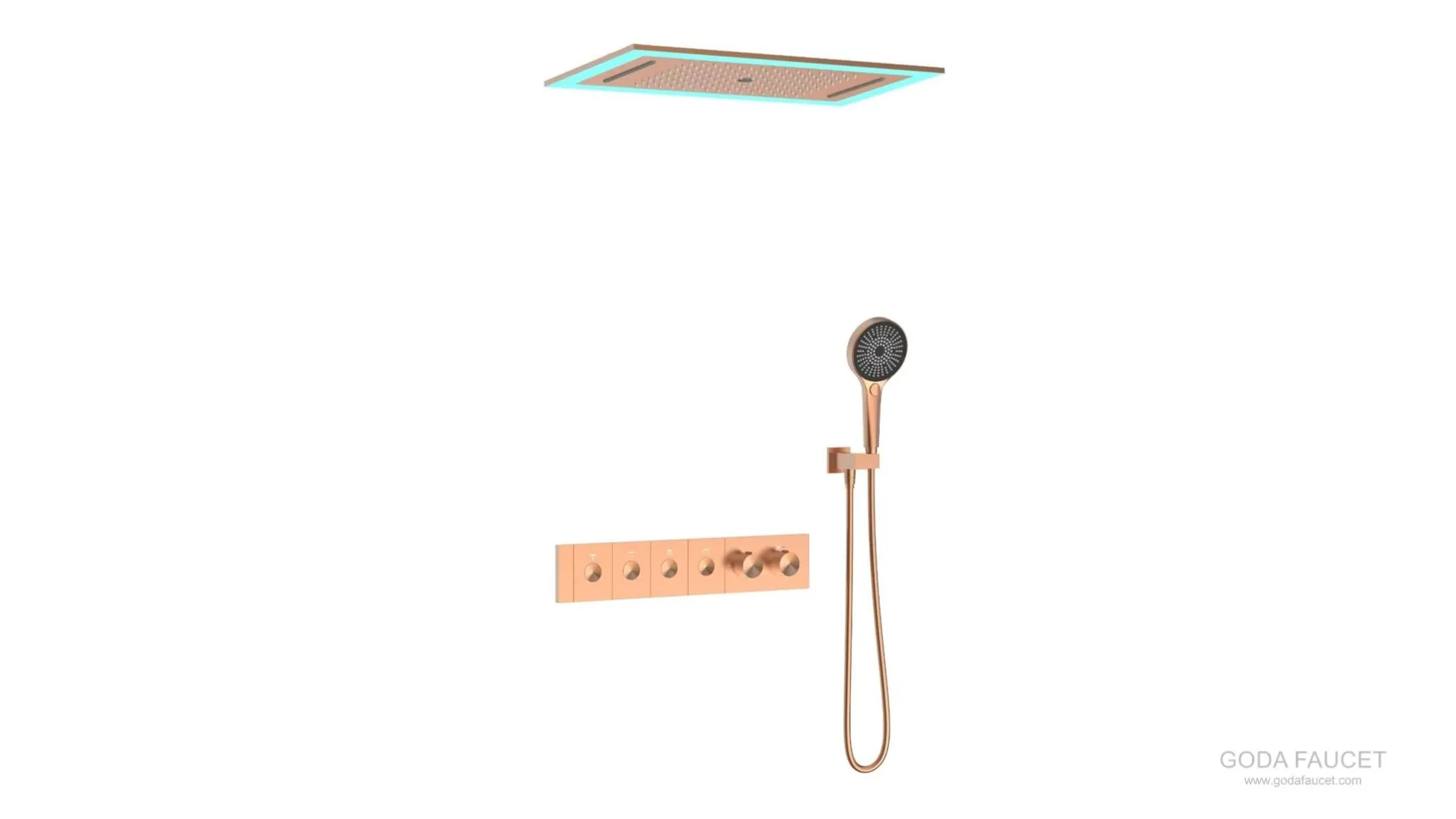

The round multifunction ABS handset provides a handheld option for directed rinsing. A compact separate wall bracket and flexible hose complete the arrangement. The supplied rose-gold-tone reference below shows the original component layout; finish appearance and handset spray settings should be checked with an approved sample.
⚙️ Technical Specifications
- Model: GD-11030
- Product Type: Thermostatic Concealed Shower System
- Body Material: Brass
- Overhead Shower Material: 304 Stainless Steel
- Overhead Design: Rectangular Ceiling Panel
- Hand Shower Material: ABS
- Hand Shower Functions: Multifunction
- Installation Type: Concealed
- Water Supply: Hot & Cold
- Outlet Selection: Push-Button Diverter
- Temperature Control: Thermostatic
- Control Layout: Four Push Buttons and Two Larger Rotary Knobs
- Finish Shown: Chrome Visualization
- Finish Options: Chrome, Brushed Gold, Black and Gun Gray visualizations
- Application: Residential Bathrooms, Hotels and Bathroom Projects
🏨 Bathroom and Hospitality Project Applications
The ceiling panel and concealed controls suit residential bathrooms, hotel rooms and coordinated bathroom projects. Send the ceiling construction, valve position, pipe routing and service-access plan for review. Verify all rough-in dimensions before completing the wall and ceiling finishes.
🎨 Chrome Finish
The chrome visualization in the overview gives the panel and controls a bright metallic appearance. It coordinates with white ceramics, light tiles and matching chrome basin fittings for a contemporary bathroom collection.

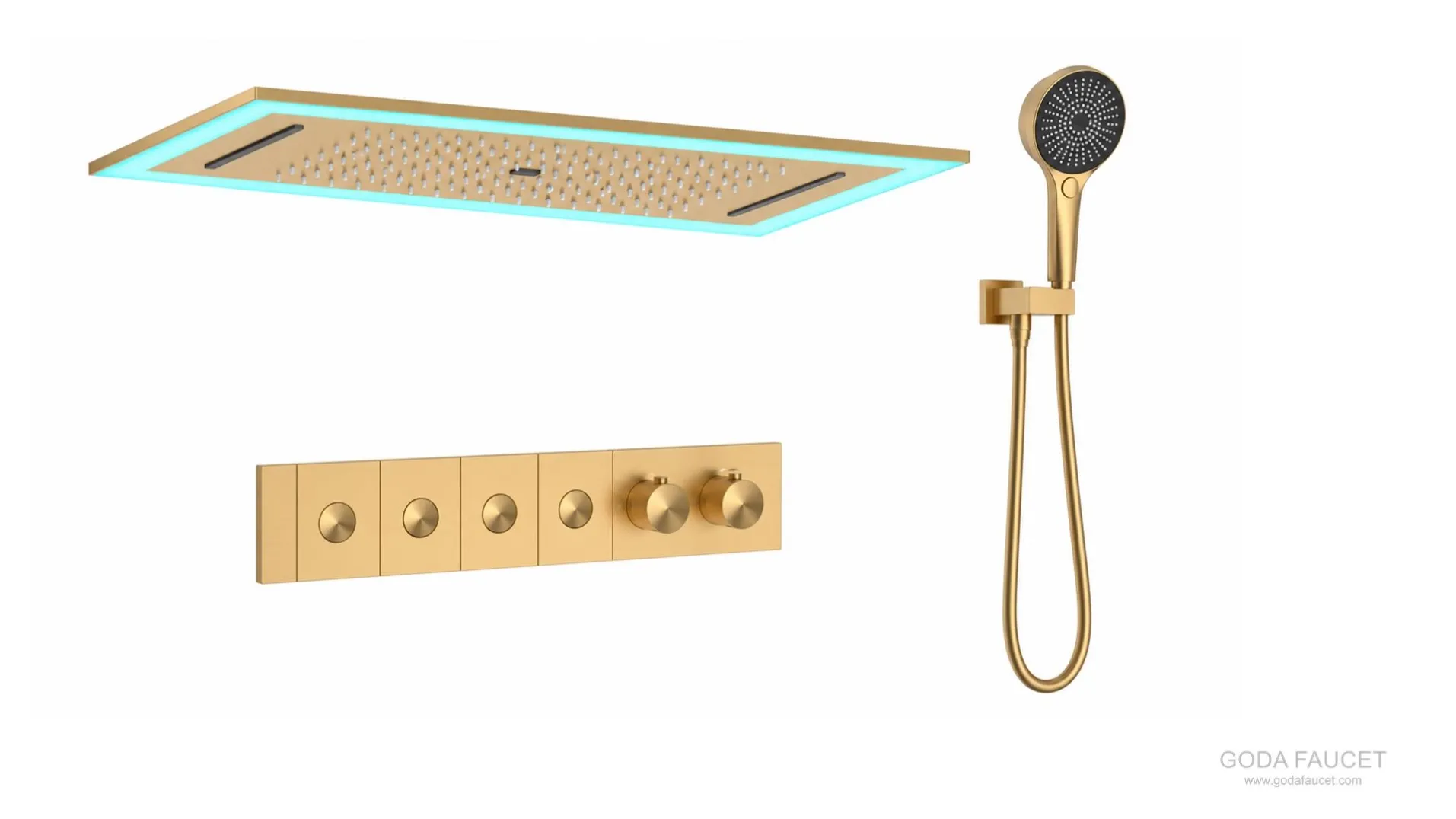

Brushed Gold Finish
Brushed Gold adds a warm satin appearance to the broad panel and horizontal trim. Consider this finish alongside cream stone, warm wood tones and matching bathroom accessories when planning a coordinated interior.

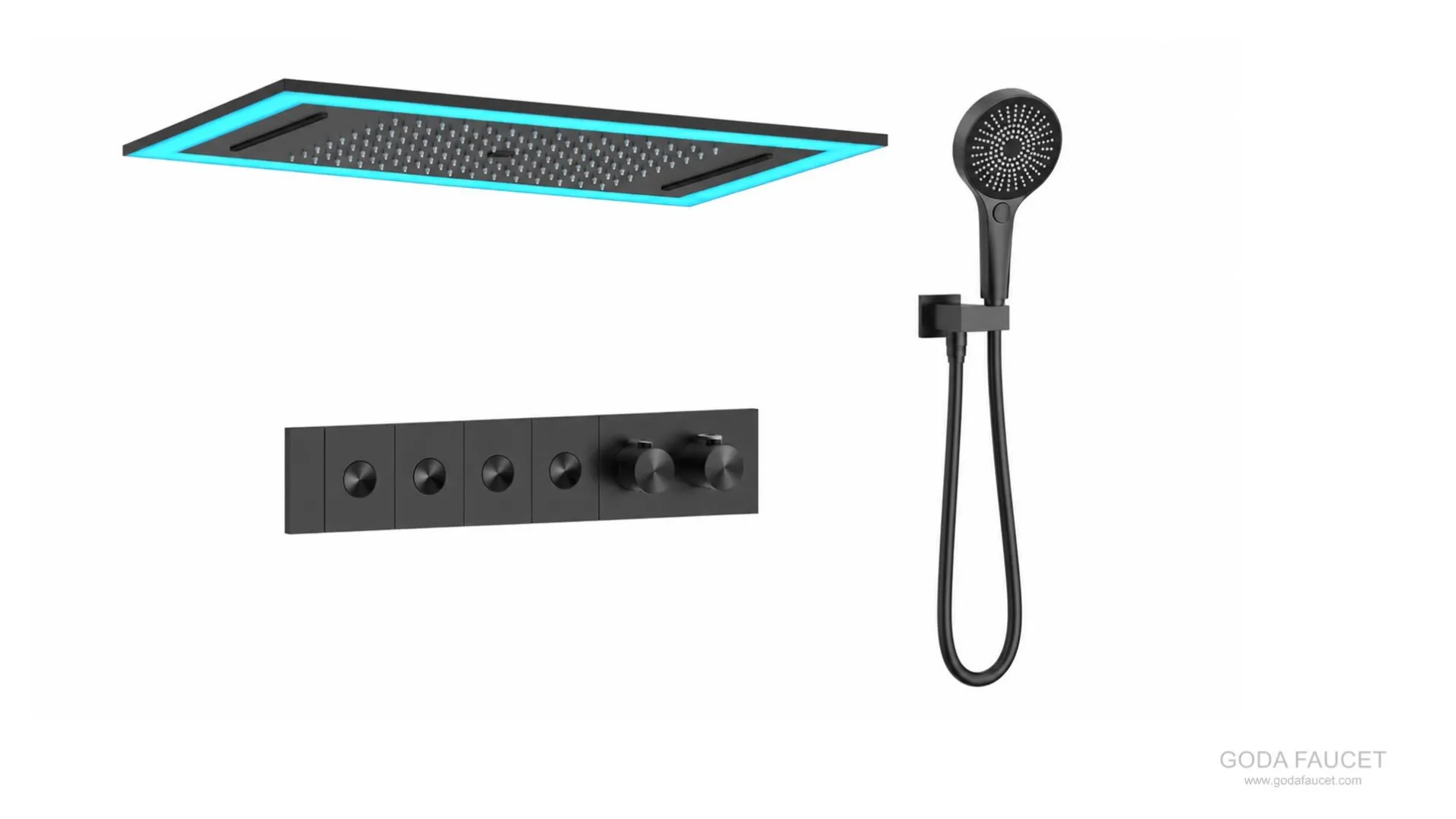

Black Finish
Black emphasizes the straight edges of the ceiling panel and control plate. It provides a defined silhouette against pale surfaces and works with coordinated dark bathroom hardware.

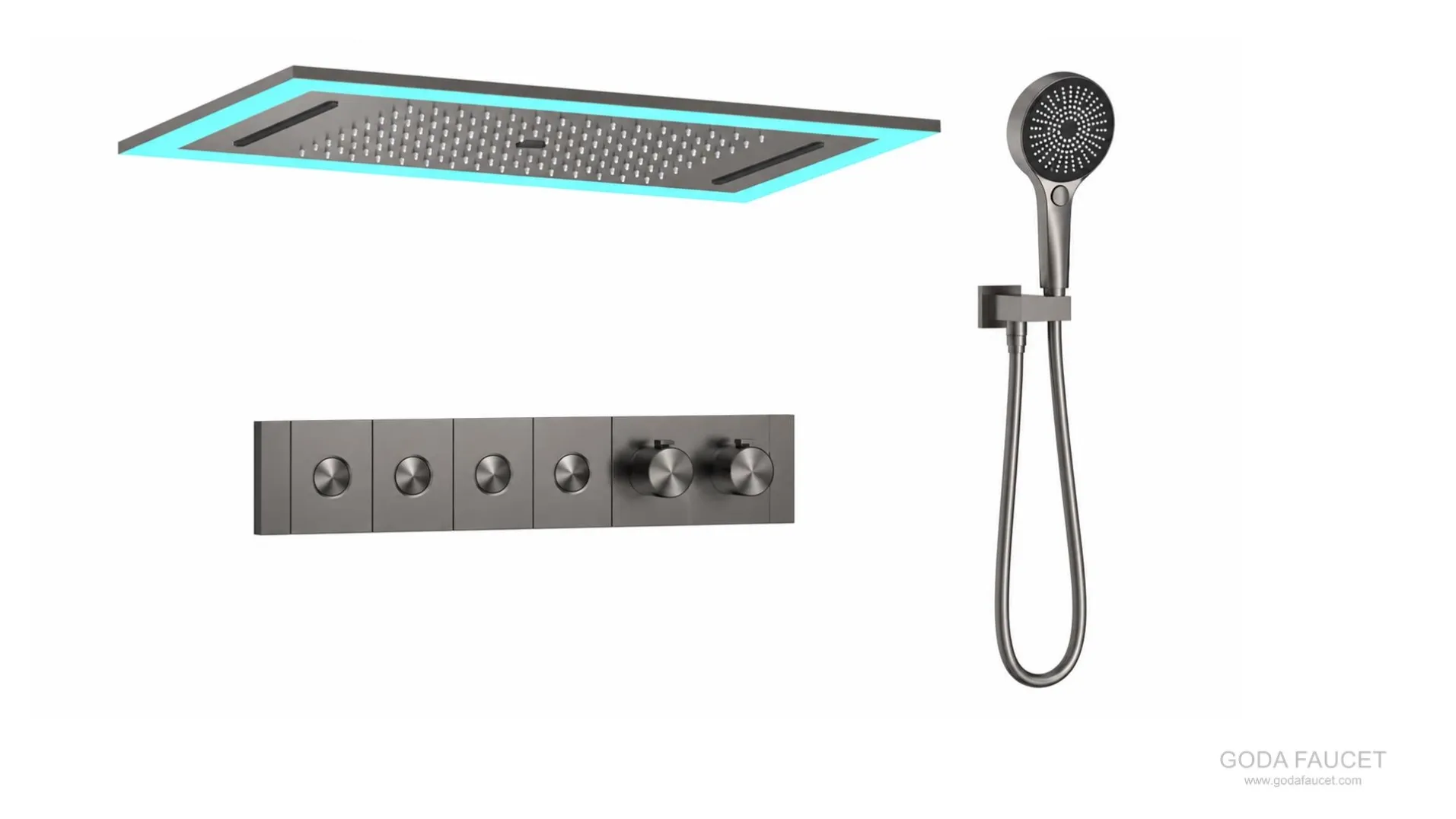

Gun Gray Finish
Gun Gray offers a darker metallic direction with tonal reflections across the panel and knobs. Pair it with gray stone, neutral tiles and contemporary project finishes when developing a shower collection.
The four finish images are AI color visualizations for reference. Confirm the final color, surface texture and any illustrated panel-edge lighting configuration against an approved sample and the final order specification.
Compare a Compact Round Wall-Mounted Alternative
Explore the GD-11029 Dual Push-Button Thermostatic Concealed Shower System for a round wall-mounted overhead and a smaller two-button control layout. Compare its mounting arrangement with GD-11030's rectangular ceiling panel and four-button trim to select a suitable configuration.
🏭 Wholesale & OEM/ODM Sourcing
For Distributors: Request a GD-11030 sample to assess the finish, control feel, handset settings and component proportions within your shower range.
For Project Buyers: Share bathroom drawings, supply conditions, installation requirements, quantities and destination market so our team can discuss the ordered configuration.
For Private-Label Orders: Ask about logo marking, packaging and finish customization. MOQ, lead time and final supply details are confirmed with your quotation.
Explore the GODA Product Collection
Browse the GODA faucet and shower product collection to compare concealed showers, basin faucets and bath fittings. Send selected models, finishes and quantities together for coordinated sourcing and quotation.
📩 Request a Bulk Quote & Sample
Send model GD-11030, order quantity, preferred finish and destination country for wholesale pricing and sample information. Include your installation drawing and target delivery schedule for project inquiries.
Request GD-11030 Pricing & Samples through our inquiry page.
