Thermostatic Concealed Brass Shower System with Rectangular 304 Ceiling Overhead | GD-11032
GD-11032 is a thermostatic concealed shower system with a brass body, thin rectangular 304 stainless steel ceiling overhead and multifunction ABS hand shower. Three push-button outlet controls and two larger rotary knobs share a horizontal trim, with a compact handset bracket and hose. Chrome, Brushed Gold, Black and Gun Gray finish visualizations are provided. Contact GODA for wholesale pricing, samples and OEM/ODM sourcing.
Specifications
- Model
- GD-11032
- Product Type
- Thermostatic Concealed Shower System
- Body Material
- Brass
- Overhead Shower Material
- 304 Stainless Steel
- Overhead Design
- Thin Rectangular Ceiling Panel
- Hand Shower Material
- ABS
- Hand Shower Functions
- Multifunction
- Installation Type
- Concealed
- Water Supply
- Hot & Cold
- Outlet Selection
- Push-button Diverter
- Temperature Control
- Thermostatic
- Control Layout
- Three Push Buttons and Two Larger Rotary Knobs
- Finish Shown
- Chrome (Visualization)
- Finish Options
- Chrome, Brushed Gold, Black and Gun Gray visualizations
- Application
- Residential Bathrooms, Hotels and Projects
Thermostatic Concealed Brass Shower System with Rectangular Ceiling Overhead
GD-11032 combines a brass main body, thermostatic temperature control and push-button outlet selection with a thin rectangular 304 stainless steel overhead and multifunction ABS hand shower. The ceiling panel, horizontal control trim and compact handset bracket form a coordinated concealed layout for bathroom collections and hospitality sourcing.
✨ Thin Rectangular 304 Stainless Steel Overhead
The broad, thin panel has a central nozzle field and two narrow linear openings, one toward each end, as shown in the supplied reference. Its straight edges contrast with the round handset and rotary knobs. Confirm the panel dimensions, outlet functions, ceiling connections and mounting requirements against the final technical drawing.
Three Push Buttons & Two Larger Rotary Knobs
Three small round push buttons sit beside two larger rotary knobs on a horizontal rectangular trim. Push-button diversion groups outlet selection in one accessible control area. Confirm each button's outlet assignment and supported operating combinations for your ordered configuration.
Thermostatic Mixing for Hot & Cold Supplies
GD-11032 includes thermostatic temperature control for mixing hot and cold water. Review the supply conditions, commissioning instructions and maintenance-access plan with GODA when specifying the concealed mixer. Final temperature settings and operating requirements are confirmed with the order documentation.
Multifunction ABS Hand Shower & Compact Bracket

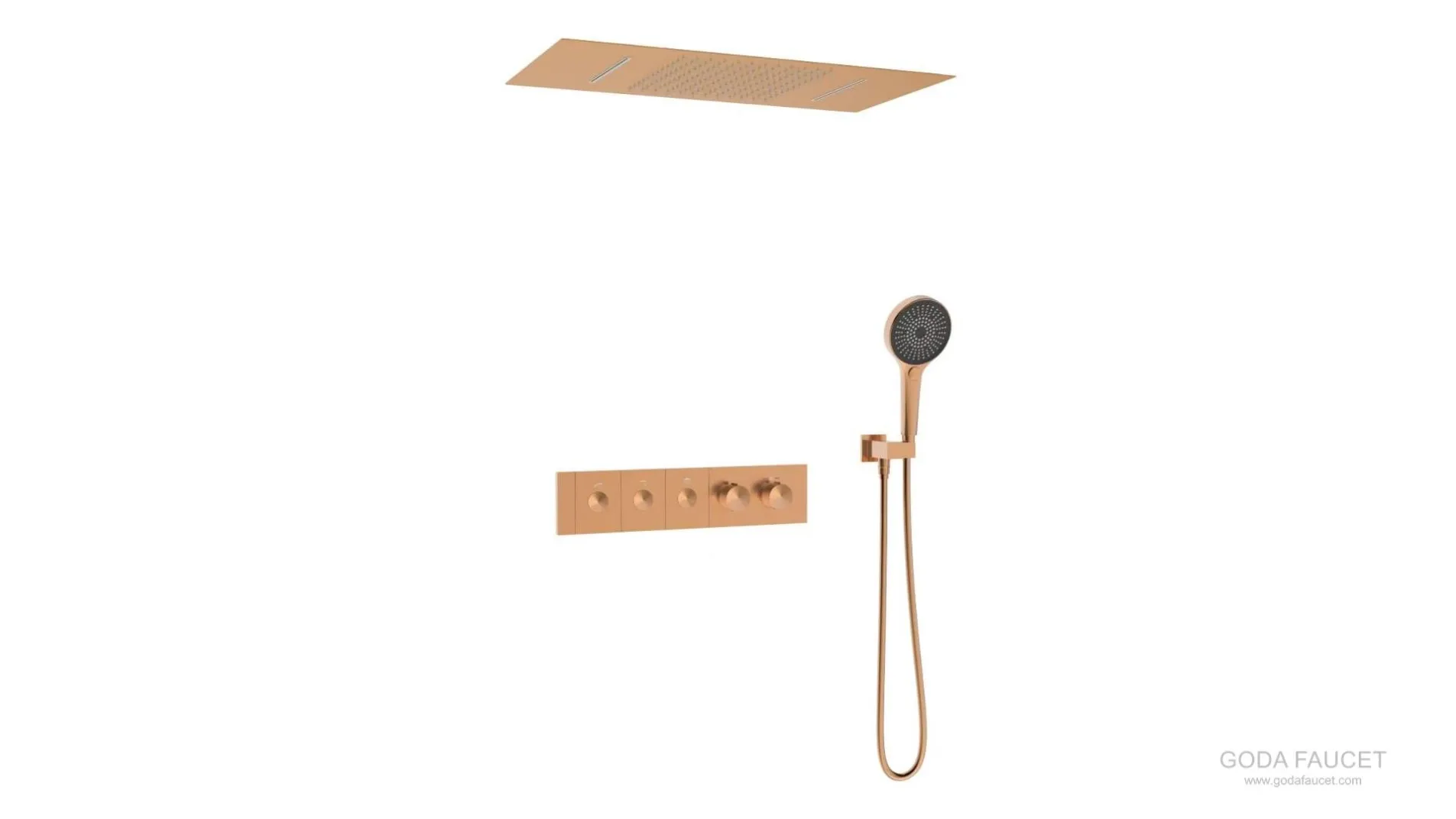

The round multifunction ABS handset provides a handheld option for directed rinsing. Its compact separate wall bracket and flexible hose allow the handset position to be planned alongside the overhead and trim. The original rose-gold-tone reference below shows the supplied component arrangement. Confirm the handset spray settings and bracket dimensions with a sample and technical drawing.
⚙️ Technical Specifications
- Model: GD-11032
- Product Type: Thermostatic Concealed Shower System
- Body Material: Brass
- Overhead Shower Material: 304 Stainless Steel
- Overhead Design: Thin Rectangular Ceiling Panel
- Hand Shower Material: ABS
- Hand Shower Functions: Multifunction
- Installation Type: Concealed
- Water Supply: Hot & Cold
- Outlet Selection: Push-button Diverter
- Temperature Control: Thermostatic
- Control Layout: Three Push Buttons and Two Larger Rotary Knobs
- Finish Shown: Chrome (Visualization)
- Finish Options: Chrome, Brushed Gold, Black and Gun Gray visualizations
- Application: Residential Bathrooms, Hotels and Projects
🏨 Bathroom and Hospitality Project Applications
The rectangular ceiling panel and concealed controls suit residential bathrooms, hotel rooms and coordinated shower collections. Share ceiling construction details, valve position, pipe routing and service-access requirements before finalizing the installation. Verify rough-in dimensions before completing wall and ceiling finishes.
🎨 Chrome Finish
The Chrome visualization shown in the overview gives the panel and controls a bright metallic appearance. Coordinate it with white ceramics, pale tiles and matching chrome basin fittings for a contemporary bathroom range.

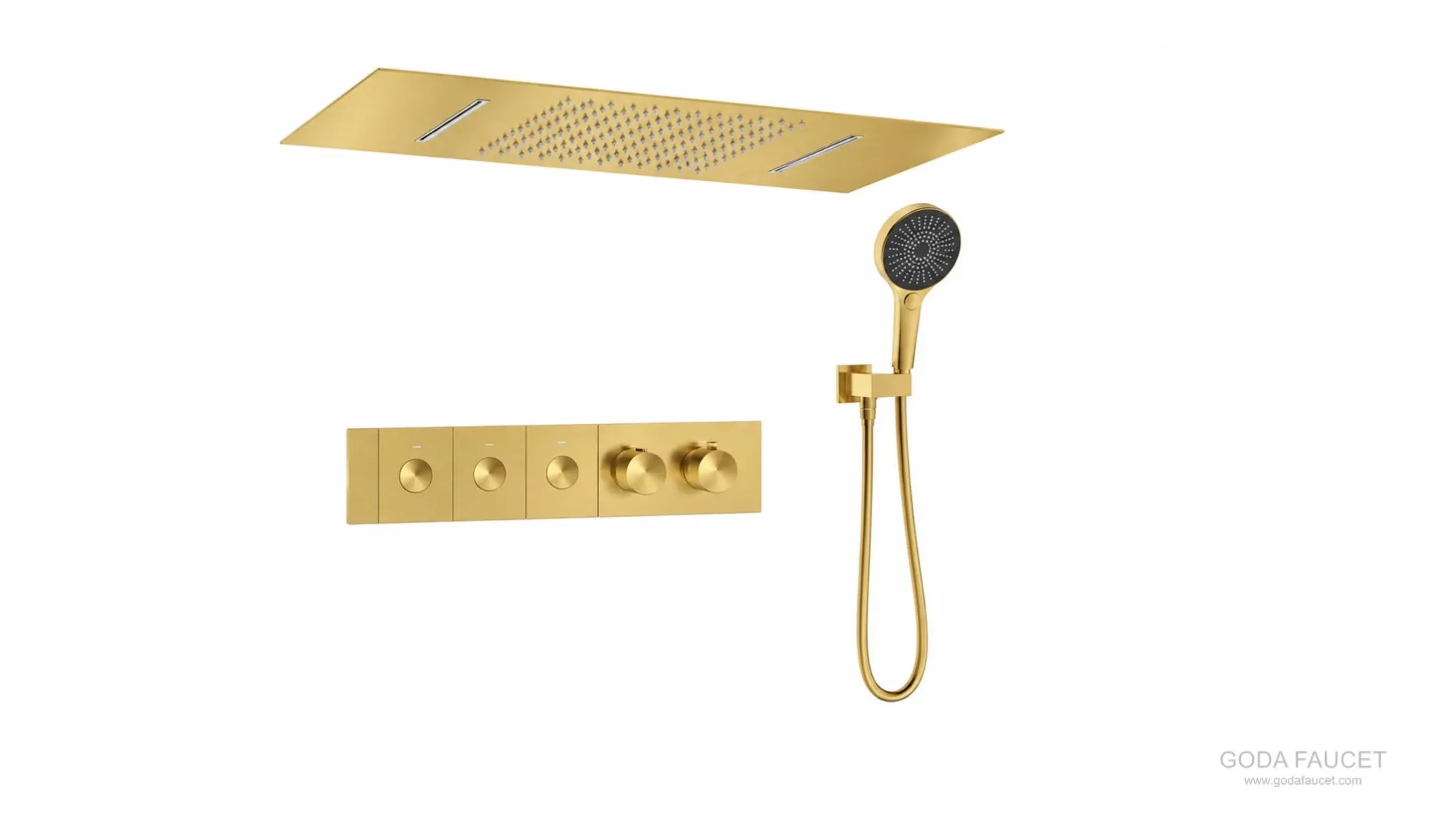

Brushed Gold Finish
Brushed Gold adds a warm satin appearance to the thin overhead panel and horizontal trim. Consider it alongside cream stone, warm wood tones and matching accessories when planning a residential or hospitality collection.

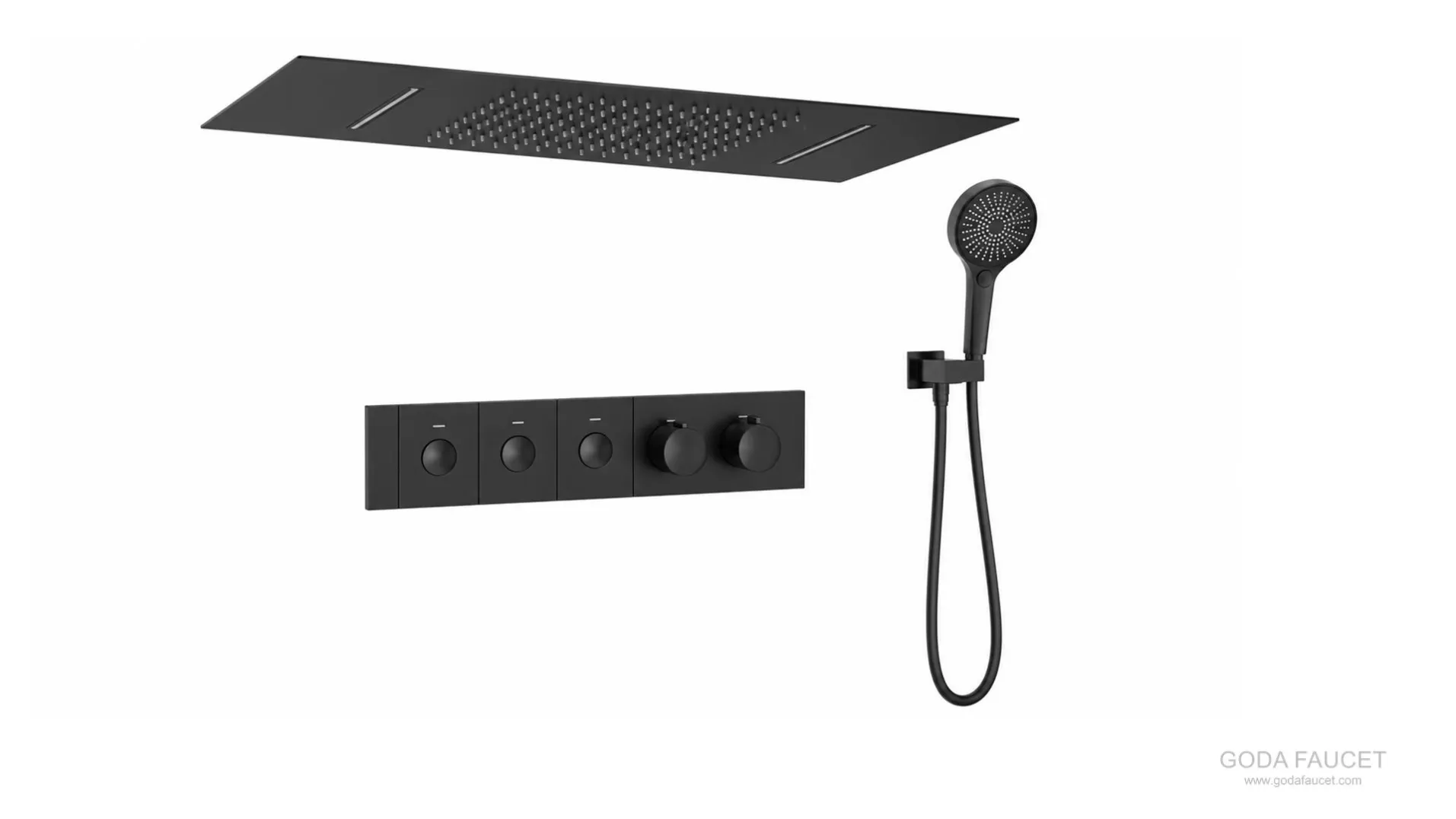

Black Finish
Black emphasizes the straight edges of the ceiling panel and control plate. It creates a defined outline against pale wall finishes and coordinates with dark bathroom hardware.

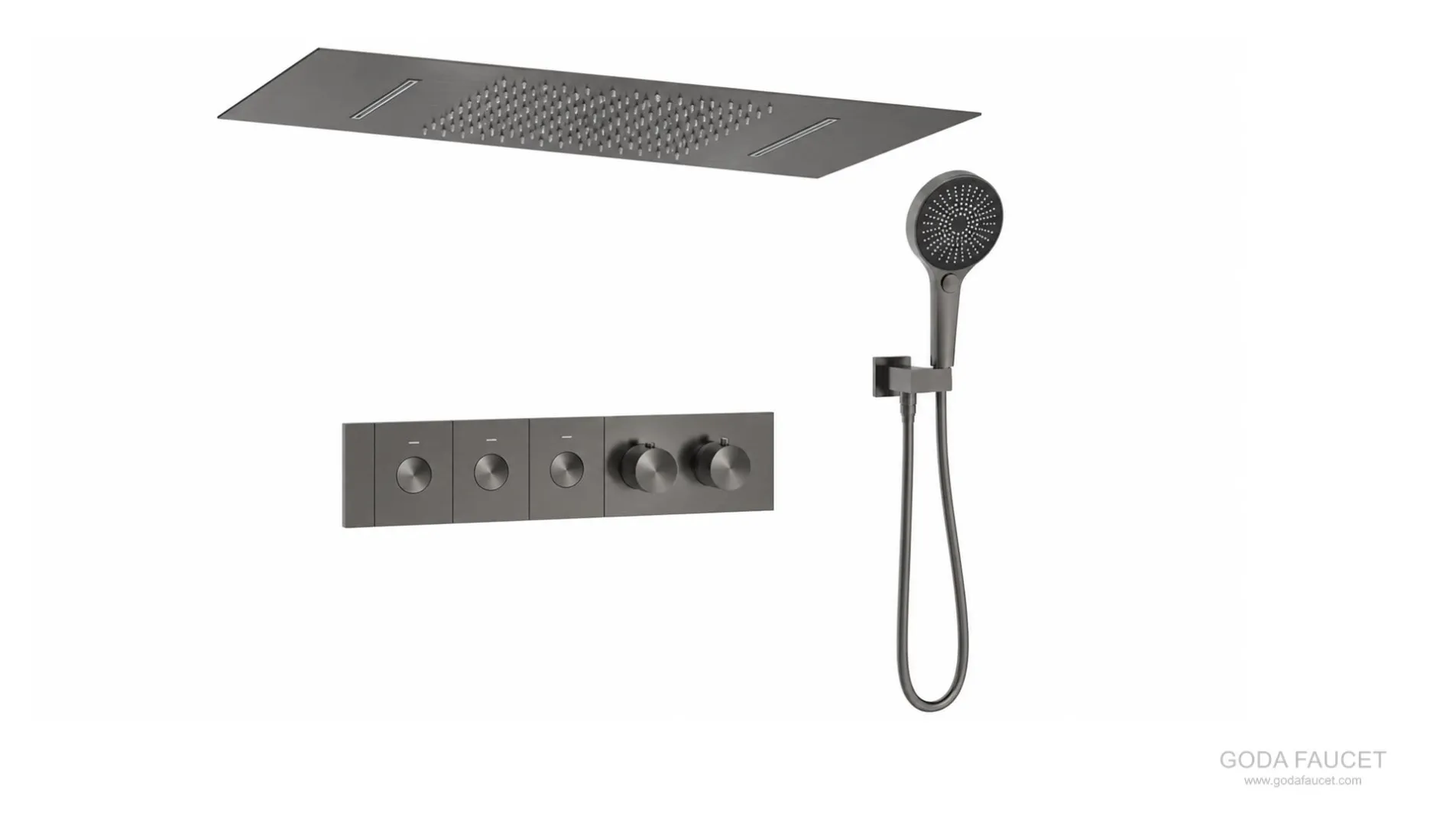

Gun Gray Finish
Gun Gray gives the broad panel and circular controls a darker metallic appearance with tonal reflections. Pair it with gray stone and neutral tiles when developing a coordinated project interior.
The original rose-gold-tone image is supplied as a product reference. Chrome, Brushed Gold, Black and Gun Gray images are AI finish visualizations. Confirm final color and surface texture against an approved sample before bulk ordering.
Compare a Rectangular Ceiling System with Additional Controls
Explore the GD-11030 Rectangular Ceiling Thermostatic Concealed Shower System for a related ceiling-panel design. GD-11030 has four small push buttons and two larger rotary knobs, while GD-11032 uses three push buttons and two larger knobs with a thin overhead panel. Compare the component arrangement and ordered outlet configuration for your project.
🏭 Wholesale & OEM/ODM Sourcing
For Distributors: Request a GD-11032 sample to assess finish appearance, button operation, handset settings and component proportions within your current shower range.
For Project Buyers: Send bathroom drawings, supply conditions, installation requirements, quantities and destination market so our team can discuss a suitable configuration.
For Private-Label Orders: Ask about logo marking, packaging and finish customization. MOQ, lead time and final supply details are confirmed with your quotation.
Explore the GODA Product Collection
Browse the GODA faucet and shower product collection to compare concealed showers, basin faucets and bath fittings. Send selected models, finishes and quantities together for coordinated sourcing and quotation.
📩 Request a Bulk Quote & Sample
Send model GD-11032, order quantity, preferred finish and destination country for wholesale pricing and sample information. Include your installation drawing and target delivery schedule for project inquiries.
Request GD-11032 Pricing & Samples through our inquiry page.
Email: luxiaozhou739@gmail.com
WhatsApp: +86 188 0255 0522
